Step 1: Punch out the pin from the broken latch using a small Punch or nail (1/16”) and keep the pin.

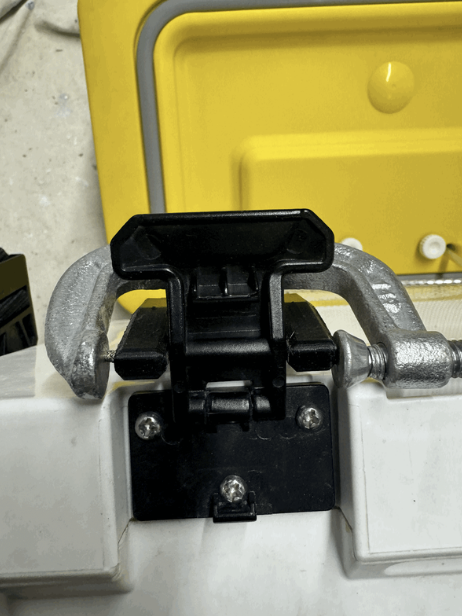

Close-up of a black latch mechanism attached to a white surface with a yellow object in the background.

Step 4: Set the pin to final depth with a hammer or press into position with a C-clamp as shown.

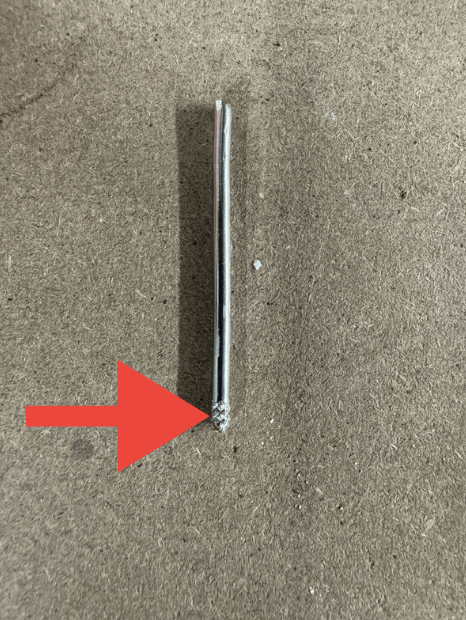

Close-up of a broken metal object, possibly a nail or screw, on a brown surface with a red arrow pointing to the damaged end.

Bait Latch Station Instructions

*Follow all manufacturers suggestions when using this accessory. Failure to do so could lead to severe injury.

If you do not feel safe using this attachment please reach out.*

Person using a screwdriver to open or repair a white plastic storage case or box.

Step 2: Make note of the pin and the serrations on one end. Insert the opposite end into the hole of the new latch. Make sure the pin is started in the far side before moving to step

A black adjustable foot pedal on a white surface, with a textured grip on top, attached to a gray cord. There is a yellow and white object in the background.

Step 3: Insert the pin on the new latch. Carefully slide the pin through the hole in the middle of the latch and should be started on the far side of the latch before moving to step 4.
